800w 1-10v Corridor Dimming Function Microwave Motion Sensor MC003V for Stairwell Application
Description
MC003V is innovative and active motion detectors with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.
The sensor allows energy saving without compromising comfort. When used in combination with 1-10V dimmable LED drivers or ballasts, they can achieve 3-step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.
Also, the 1-10V interface in the sensors can match up with Merrytek stand-alone daylight sensor MS01, and implement daylight harvesting, means the lighting system has automated controls that either turn off or dim artificial light in response to the available daylight in the space.
Feature
1. Automatic dimming when used in combination with 1-10V dimmable LED drivers or ballasts.
2. Built-in adjustable daylight sensor.
3. 1-10V interface can match up with Merrytek standalone daylight sensor MS01 and achieve daylight harvesting.
5. 4-pole press-in terminal (L,N,N,L′),easy assembly.
6. Compact size makes it suitable to fix within most luminaries
7. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
8. Wide detection area, range up to 16m in diameter.
Product information
Function
3 -step dimming function
2- Step dimming function
Wiring
MC003V+1-10V driver

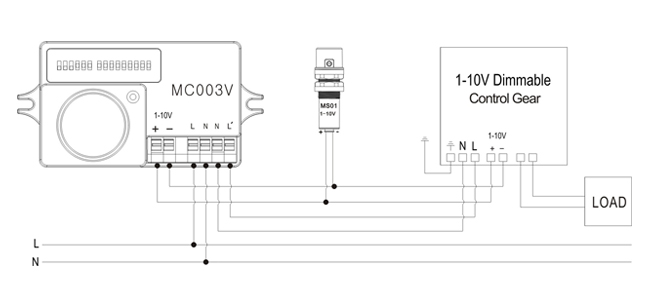

MC003V+daylight sensor MS01+1-10V driver
Specifications
| Operating voltage | 220-240Vac, 50Hz |
| Rated load | 800W(inductive), 1200W (resistive) |
| HF system | 5.8GHz±75MHz, ISM wave band |
| Power consumption | ≤0.5W(standby), <1W(operation) |
| Transmitting power | <0.5mW |
| Detection zone Max.(D x H) | 16m x 8m |
| Motion detection | 0.5~3m/s |
| Detection angle | 150°(wall installation) 360°(ceiling installation) |
| IP rating | IP20 |
| Operation Temperature | -35℃~70℃ |
| Hold time | 10s/30s/90s/3min/20min/30min |
| Detection sensitivity | 10% / 25% / 50% / 75% / 100% |
| Daylight sensor | 5lux / 15lux / 30lux / 50lux / Disable |
| Stand-by period | 5s / 5min / 10min / 30min / 1h / Disable |
| Stand-by dimming level | 10% / 20% / 30% / 40% / 50% |
| Life time | 50,000 hours |
| Guaranty | 5 years |
Detection Pattern
Applications:
Stairwell, corridor, balcony, pathway, washroom, kitchen, gas stations, parking lot , warehouse ,etc
